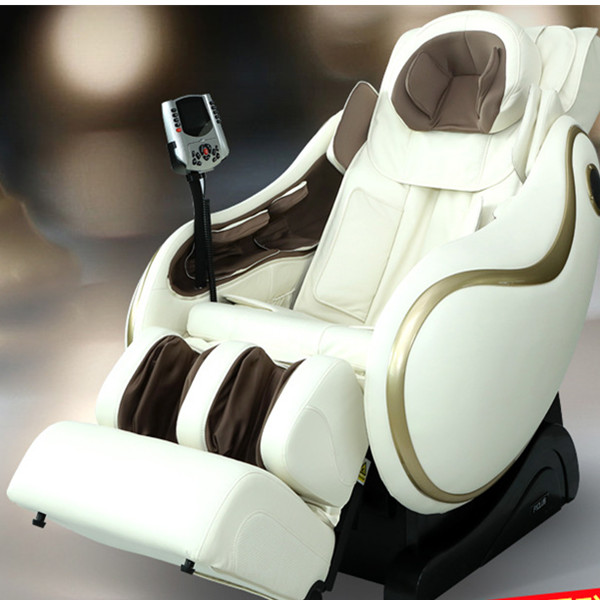

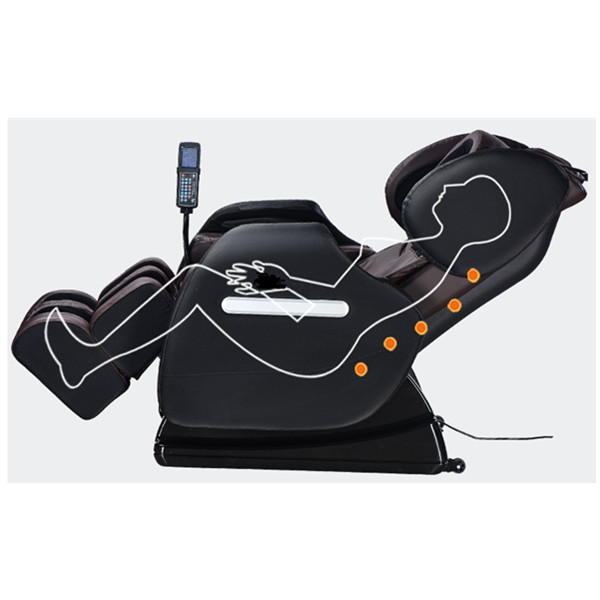

Automatic Massage Chair
Automatic Massage Chair
shared：
Automatic Massage Chair control pad uses 4.0’’-7.0’’ TFT color display.
Size | Part No. | Driving chip | Interface | TP | Resolution | Viewing angle | Dimension | AA dimension | Datasheet |
| 4.0'' | XTPW40NR02-01 | ILI9806G | RGB | NA | 480*800 | 12 | 55.44*93.9*1.05 | 51.84*86.4 |  |
| 4.3'' | XTPY43SN06-03 | ST7282 | RGB | NA | 480*272 | 6 | 105.5*67.2*2.92 | 95.04*53.856 | |
| 4.3'' | XTPQ43SN09-01 | ST7282 | RGB | NA | 480*272 | 6 | 105.5*67.2*2.9 | 95.04*53.86 | |
| 4.3'' | XTPY43SN10-02 | ST7282 | RGB | NA | 480*272 | 6 | 105.5*67.2*2.9 | 95.04*53.86 | |
| 5.0'' | XTPY50SN03-01 | LIL6480 | RGB | RTP | 480*272 | 12 | 120.7*75.8*2.7 | 110.88*62.83 | |
| 5.0'' | XTPW50SN04-01 | ILI6122 ILI5960 | RGB | NA | 800*480 | 12 | 120.7*75.8*2.95 | 108*64.8 | |
| 5.0'' | XTPW50SN04-05 | ILI6122 ILI5960 | RGB | CTP | 800*480 | 12 | 120.7*75.8*4.69 | 108*64.8 | |
| 5.7'' | XTPV57TP01-03 | HX8250+HX8678 | RGB | RTP | 640*480 | 6 | 127*98.43*9.2 | 115.2*86.4 | |
| 7.0'' | XTPW70NP01-03 | HX8264 HX8664 | RGB | CTP | 800*480 | 12 | 164.9*100*5.525 | 154.08*85.92 | |
| 7.0'' | XTPW70NP01-07 | HX8264 HX8664 | RGB | CTP | 800*480 | 6 | 164.9*100*5.525 | 154.08*85.92 | |
| 7.0'' | XTPW70NP07-07 | HX8264 HX8664 | RGB | RTP | 800*480 | 12 | 164.9*100*7.25 | 154.08*85.92 | |
| 7.0'' | XTPW70NP03-05 | / | LVDS | NA | 1024*600 | 12 | 165.75*105.39*3.3 | 153.6*90 | |
| 7.0'' | XTPW70TP05-09 | / | RGB | NA | 1024*600 | 6 | 164.9*100*3.5 | 154.21*85.92 | |
