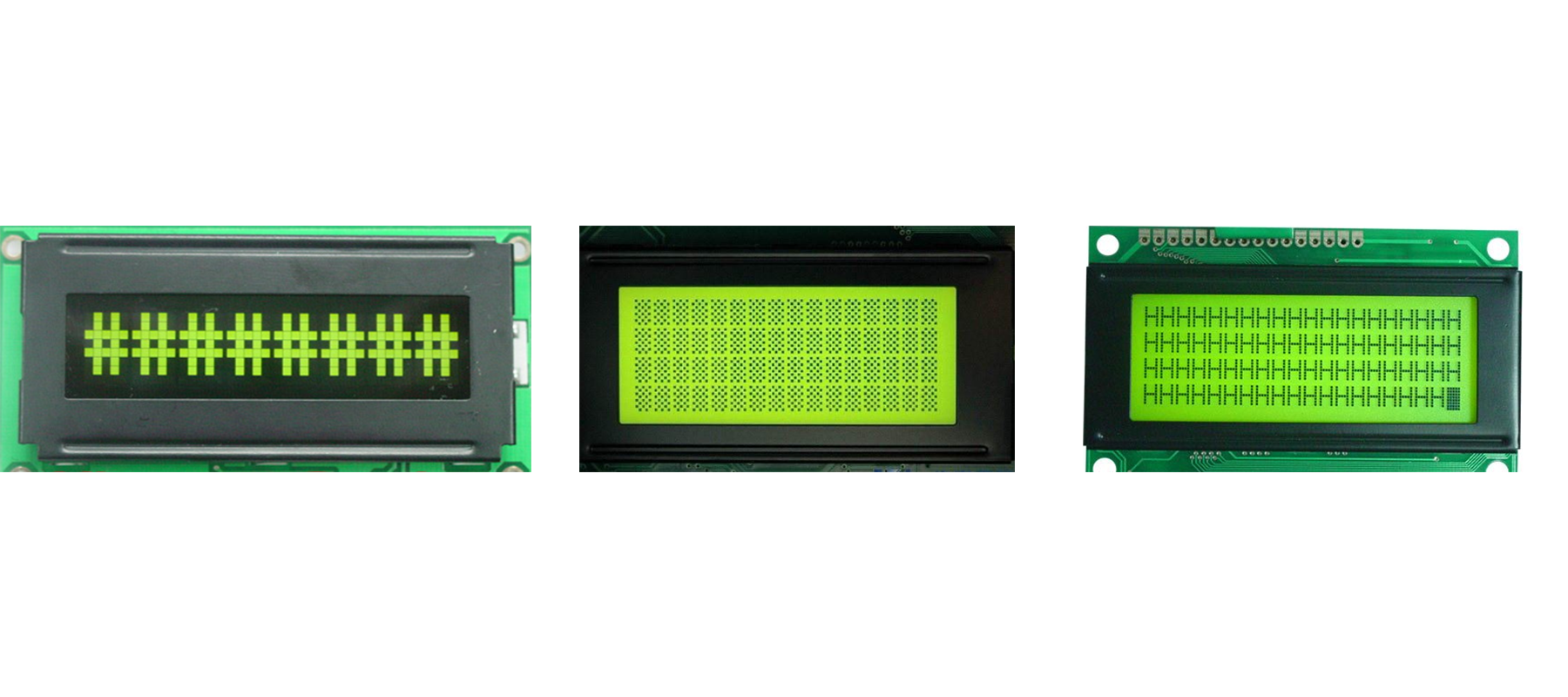

Character LCM
Character LCM
shared：
| C X L | Item | Outer Dimension | Viewing Area | Dots Size | Character Size | Controller | Datasheet | |
 | 8x1 | ADM0801A | 84.0*44.0 | 61.0*15.8 | 1.25*1.30 | 6.45*10.75 | ST7066 |
|
| ADM0801B | 53.0*24.2 | 35.0*12.6 | 0.60*0.80 | 3.40*7.10 | ST7066 |
| ||
| ADM0801C | 69.0*27.0 | 45.2*13.8 | 0.80*0.92 | 4.20*7.71 | ST7066 |  | ||
 | 8x2 | ADM0802A | 40.0*35.4 | 26.4*13.9 | 0.55*0.55 | 2.95*4.75 | ST7066 | |
| ADM0802B | 58.0*32.0 | 38.0*16.0 | 0.56*0.66 | 2.96*5.56 | ST7066 | | ||
 | 16x1 | ADM1601A | 80.0*36.0 | 64.0*13.8 | 0.55*0.75 | 3.07*6.56 | ST7066 | |
| ADM1601B | 122.0*33.0 | 99.0*13.0 | 0.92*1.10 | 4.84*9.22 | ST7066 | | ||
| ADM1601C | 80.0*36.0 | 64.5*14.0 | 0.55*0.75 | 3.07*6.56 | ST7066 | | ||
| ADM1601D | 122.0*33.0 | 99.0*13.0 | 0.92*1.10 | 4.84*9.66 | ST7066 | | ||
| ADM1601G | 151.0*40.0 | 120.0*23.0 | 1.15*1.76 | 6.00*14.54 | ST7066 | | ||

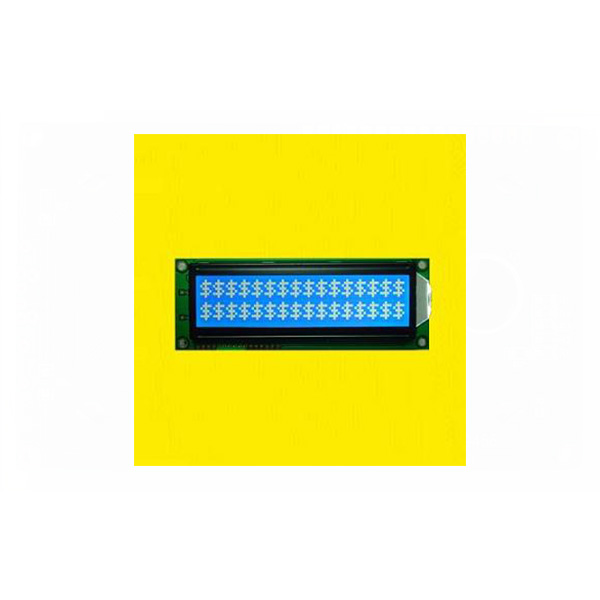

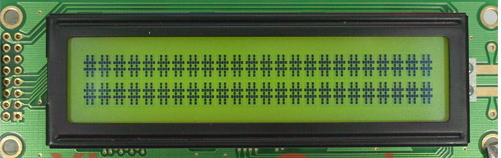

 | 16x2 | ADM1602A | 80.0*36.0 | 64.0*13.8 | 0.55*0.50 | 2.95*4.35 | ST7066 | |
| ADM1602B | 84.0*44.0 | 64.5*16.4 | 0.56*0.61 | 3.00*5.23 | ST7066 | | ||
| ADM1602E | 85.0*36.0 | 64.5*16.4 | 0.56*0.61 | 3.00*5.23 | ST7066 | | ||
| ADM1602F | 79.05*36.0 | 64.5*20.0 | 0.56*0.66 | 2.96*5.56 | ST7066 | | ||
| ADM1602H | 65.5*36.7 | 54.0*14.4 | 0.47*0.58 | 2.55*4.99 | ST7066 | | ||
| ADM1602K | 80.0*36.0 | 64.5*16.4 | 0.56*0.61 | 3.00*5.23 | ST7066 | | ||
| ADM1602N | 85.0*29.0 | 64.5*16.4 | 0.56*0.61 | 3.00*5.23 | ST7066 | | ||
| ADM1602P | 80.0*36.0 | 64.0*13.8 | 0.55*0.50 | 2.95*4.35 | ST7066 | | ||
| ADM1602S | 122.0*44.0 | 95.2*20.0 | 1.00*1.15 | 5.20*9.55 | ST7066 | | ||
| ADM1602T | 85.0*32.6 | 64.5*16.4 | 0.56*0.61 | 3.00*5.23 | ST7066 | | ||
 | 16x4 | ADM1604B | 87.0*60.0 | 61.8*25.2 | 0.55*0.55 | 2.95*4.75 | ST7066 | |
| ADM1604C | 87.0*60.0 | 61.8*25.2 | 0.55*0.55 | 2.95*4.75 | ST7066 | | ||
 | 20x2 | ADM2002A | 146.0*43.0 | 123.0*23.0 | 0.92*1.11 | 4.84*9.22 | ST7066 | |
| ADM2002B | 180.0*40.0 | 149.0*23.0 | 1.12*1.12 | 6.00*9.66 | ST7066 | | ||
| ADM2002D | 116.0*37.0 | 83.0*18.6 | 3.20*5.55 | 0.60*0.65 | ST7066 | | ||
 | 20x4 | ADM2004A | 77.0*47.0 | 60.0*22.0 | 0.42*0.46 | 2.30*4.03 | ST7066 | |
| ADM2004D | 98.0*60.0 | 76.0*25.2 | 0.55*0.55 | 2.95*4.75 | ST7066 | | ||
| ADM2004E2 | 146.0*63.0 | 123.0*42.5 | 0.92*1.06 | 4.84*9.22 | ST7066 | | ||
 | 24x2 | ADM2402B | 116.0*18.6 | 83.0*18.6 | 0.50*0.65 | 2.70*5.55 | ST7066 | |

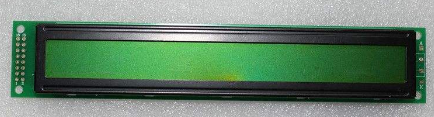

 | 40x1 | ADM4001A | 182.0*33.5 | 152.5*16.5 | 0.60*0.70 | 3.20*8.20 | ST7066 | |

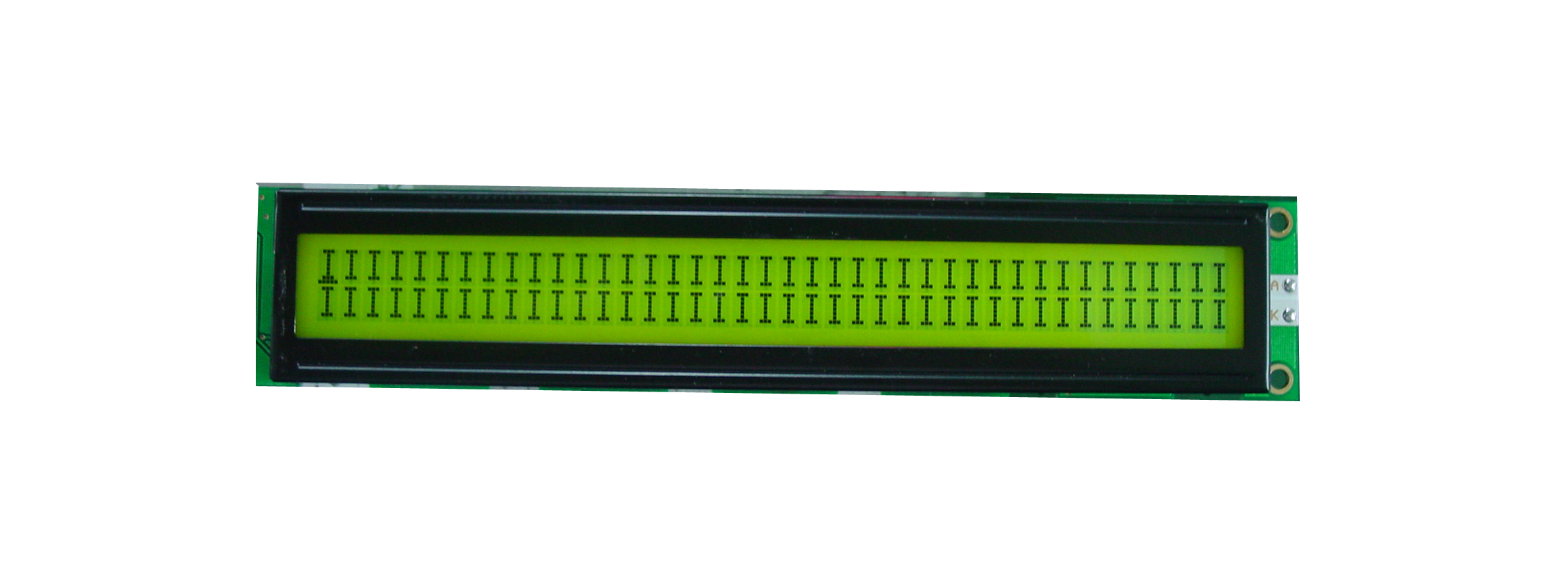

 | 40x2 | ADM4002A | 182.0*33.5 | 152.5*16.5 | 0.60*0.65 | 3.20*5.55 | ST7066 | |

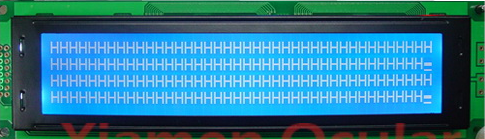

 | 40x4 | ADM4004A | 190.0*54.0 | 147.0*29.5 | 0.62*0.57 | 2.78*4.89 | ST7066 | |
